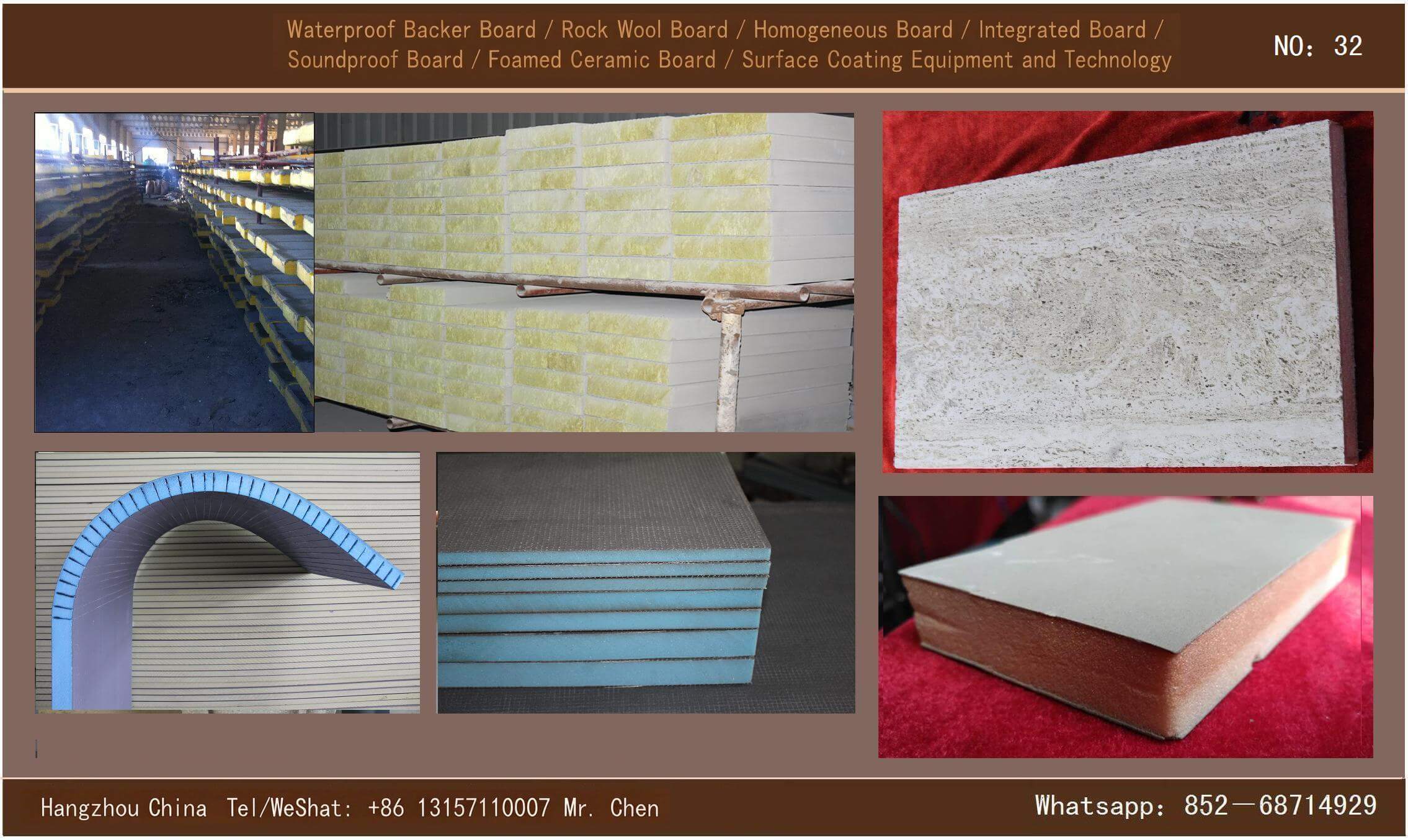

Multi-functional waterproof tile backer board

Tile Backer Board

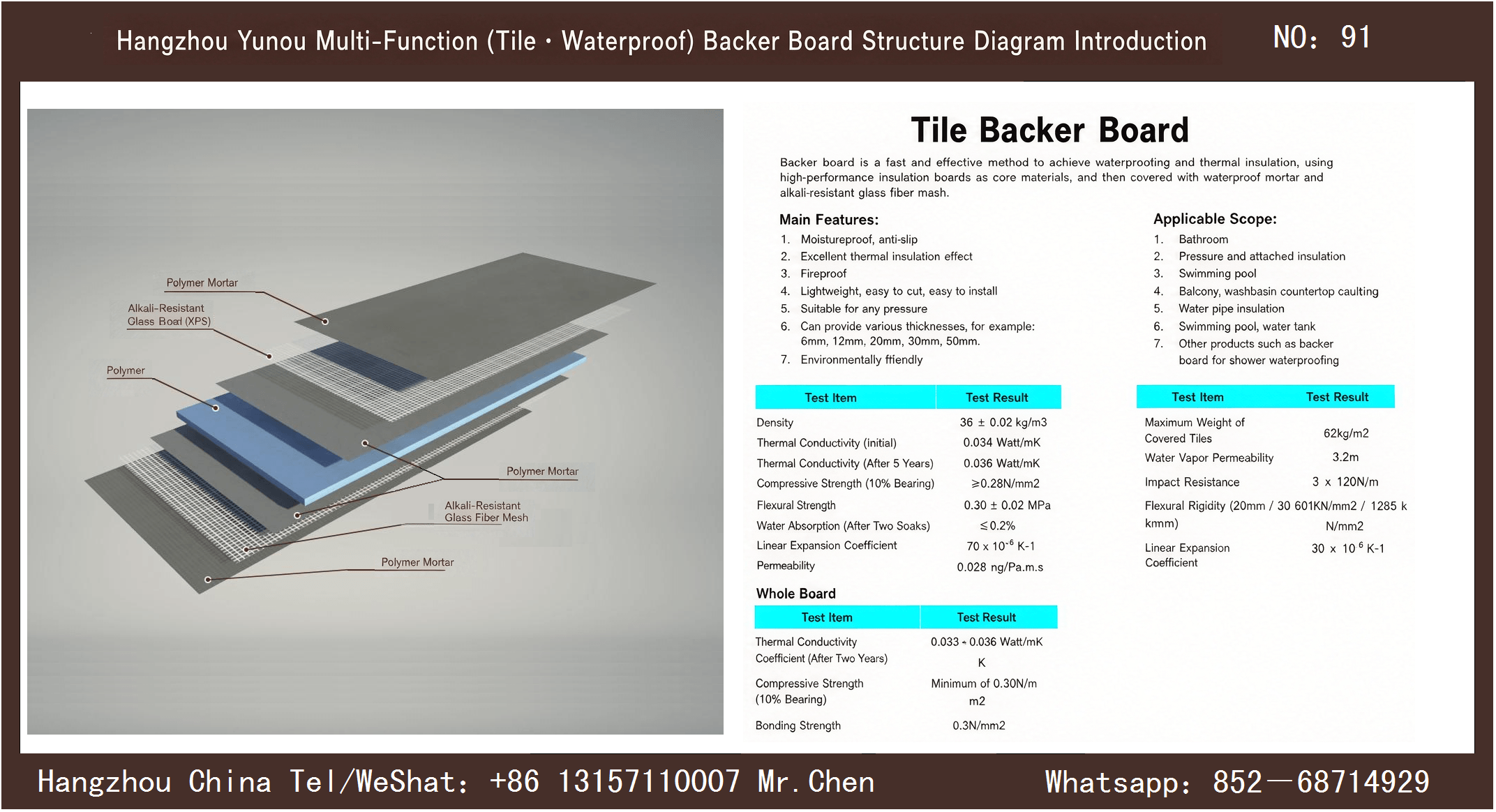

Backer board is a fast and effective method to achieve waterproofing and thermal insulation, using high-performance insulation boards as core materials, and then covered with waterproof mortar and alkali-resistant glass fiber mash.

Main Features:

1. Moistureproof, anti-slip
2. Excellent thermal insulation effect
3. Fireproof
4. Lightweight, easy to cut, easy to install
5. Suitable for any pressure
6. Can provide various thicknesses, for example: 6mm, 12mm, 20mm, 30mm, 50mm.
7. Environmentally friendly

Applicable Scope:

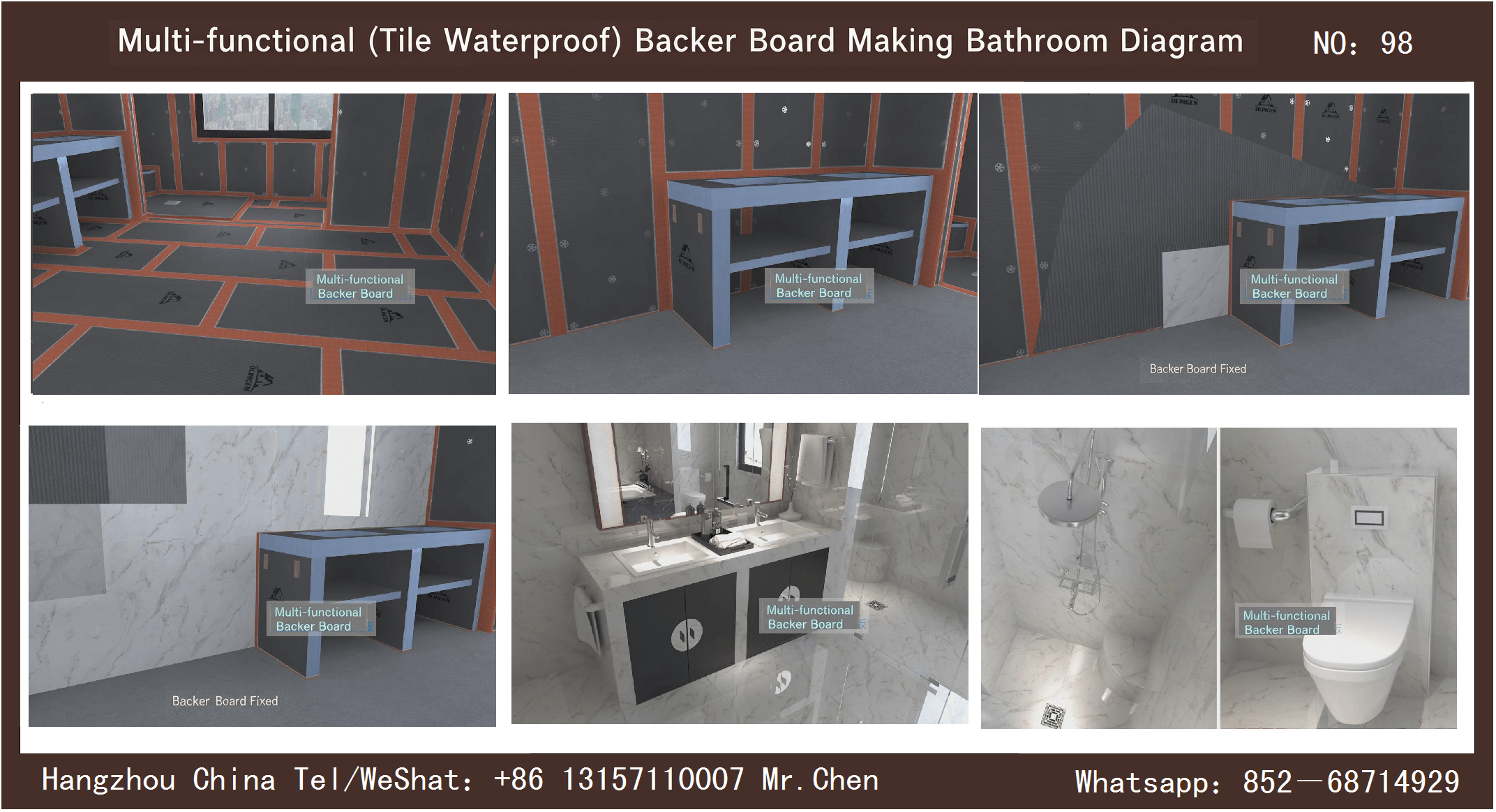

1. Bathroom
2. Pressure and attached insulation
3. Swimming pool
4. Balcony, washbasin countertop caulting
5. Water pipe insulation
6. Swimming pool, water tank
7. Other products such as backer board for shower waterproofing

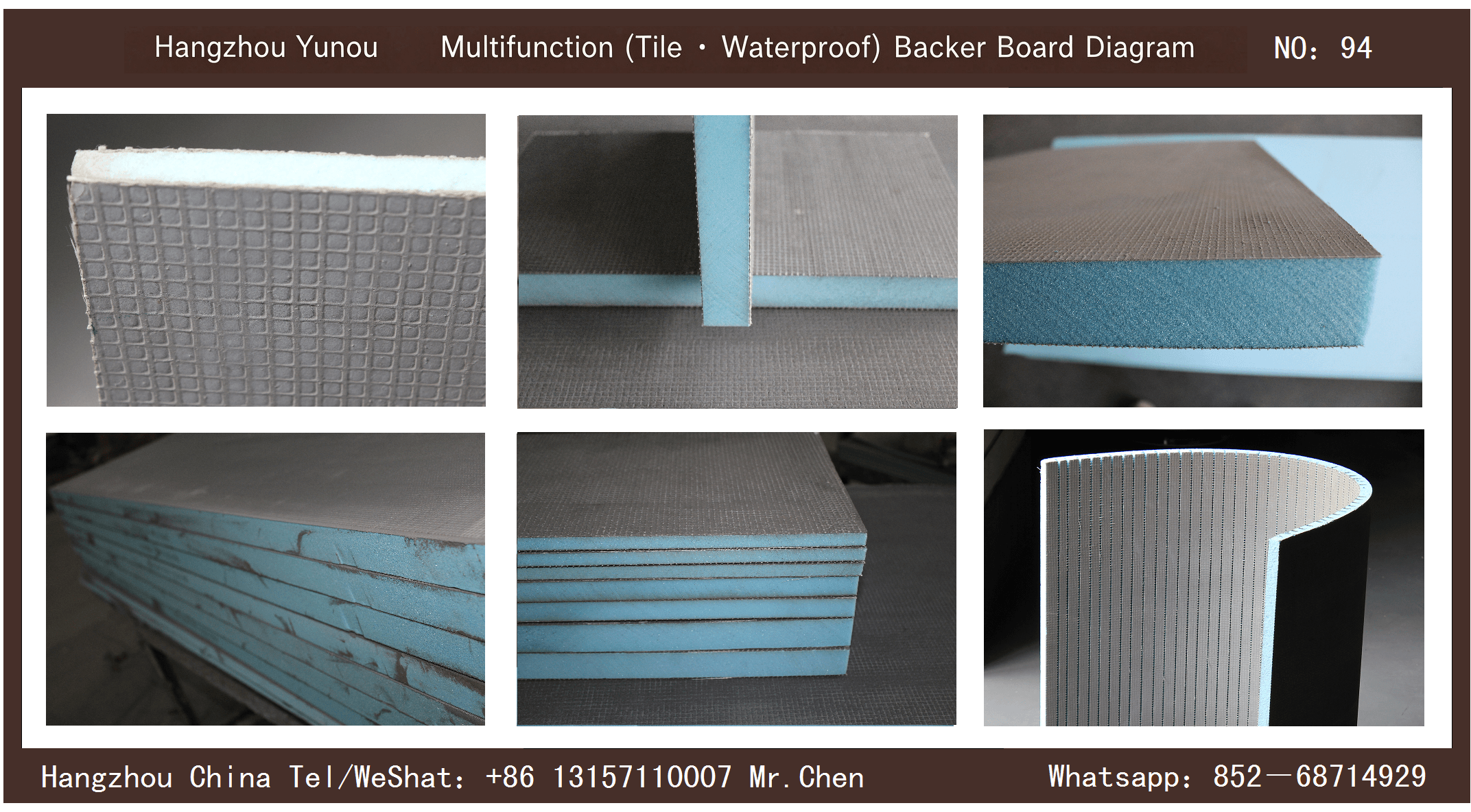

Whole Board

Hangzhou China Tel/WeChat: +86 13157110007 Mr. Chen Whatsapp: 852—68714929

Multi-functional (Tile Waterproof) Backing Board Introduction 1

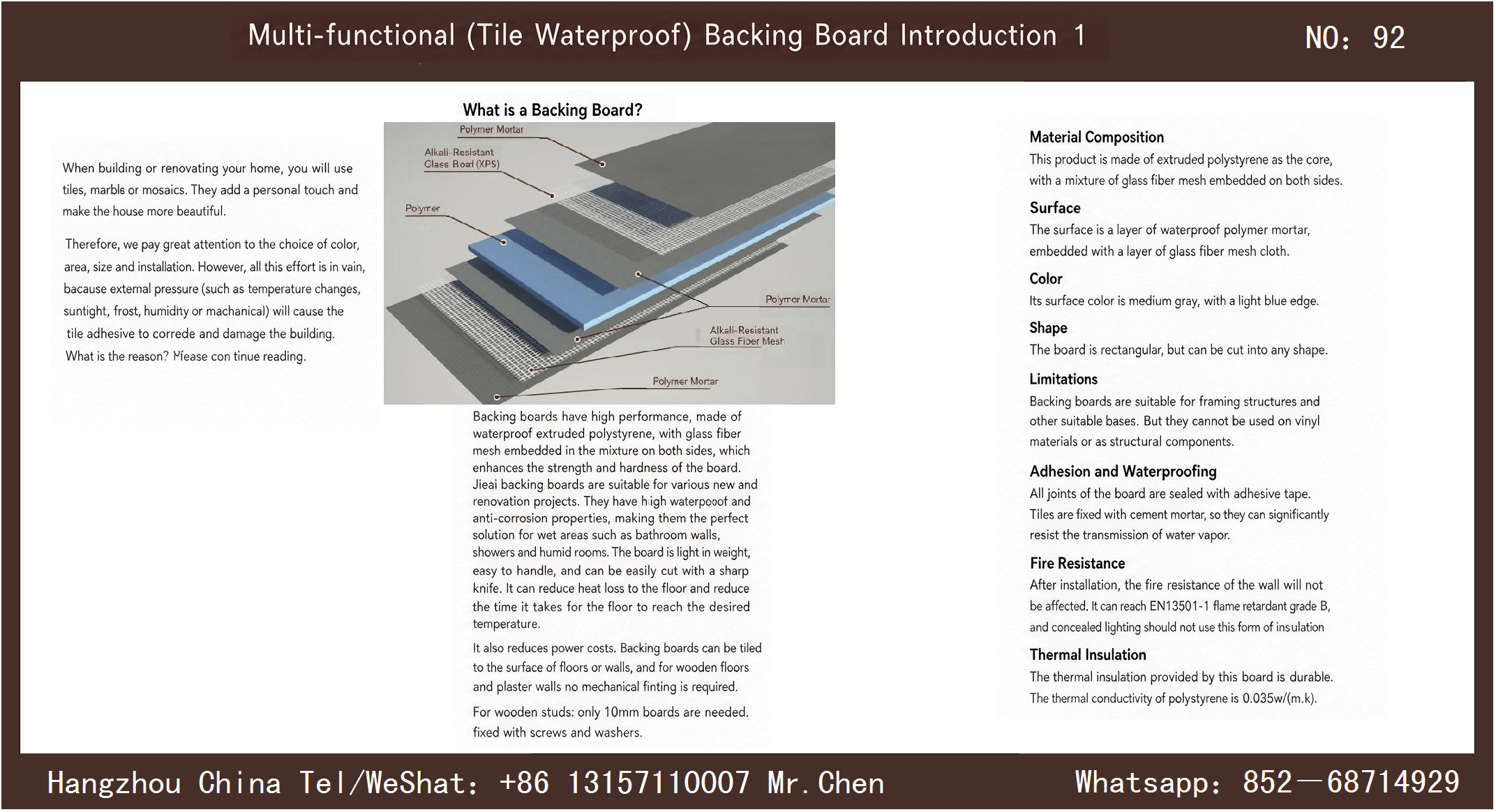

What is a Backing Board?

When building or renovating your home, you will use tiles, marbles or mosaics. They add a personal touch and make the house more beautiful.

Therefore, we pay great attention to the choice of color, area, size and installation. However, all this effort is in vain, because external pressure (such as temperature changes, sunlight, frost, humidity or mechanical) will cause the tile adhesive to corrode and damage the building. What is the reason? Please continue reading.

Backing boards have high performance, made of waterproof extruded polystyrene, with glass fiber mesh embedded in the mixture on both sides, which enhances the strength and hardness of the board. Jieai backing boards are suitable for various new and renovation projects. They have high waterproof and anti-corrosion properties, making them the perfect solution for wet areas such as bathroom walls, showers and humid rooms. The board is light in weight, easy to handle, and can be easily cut with a sharp knife. It can reduce heat loss to the floor and reduce the time it takes for the floor to reach the desired temperature.

It also reduces power costs. Backing boards can be tiled to the surface of floors or walls, and for wooden floors and plaster walls no mechanical fitting is required. For wooden studs: only 10mm boards are needed, fixed with screws and washers.

Material Composition

This product is made of extruded polystyrene as the core, with a mixture of glass fiber mesh embedded on both sides.

Surface

The surface is a layer of waterproof polymer mortar, embedded with a layer of glass fiber mesh cloth.

Color

Its surface color is medium gray, with a light blue edge.

Shape

The board is rectangular, but can be cut into any shape.

Limitations

Backing boards are suitable for framing structures and other suitable bases. But they cannot be used on vinyl materials or as structural components.

Adhesion and Waterproofing

All joints of the board are sealed with adhesive tape. Tiles are fixed with cement mortar, so they can significantly resist the transmission of water vapor.

Fire Resistance

After installation, the fire resistance of the wall will not be affected. It can reach EN13501-1 flame retardant grade B, and concealed lighting should not use this form of insulation.

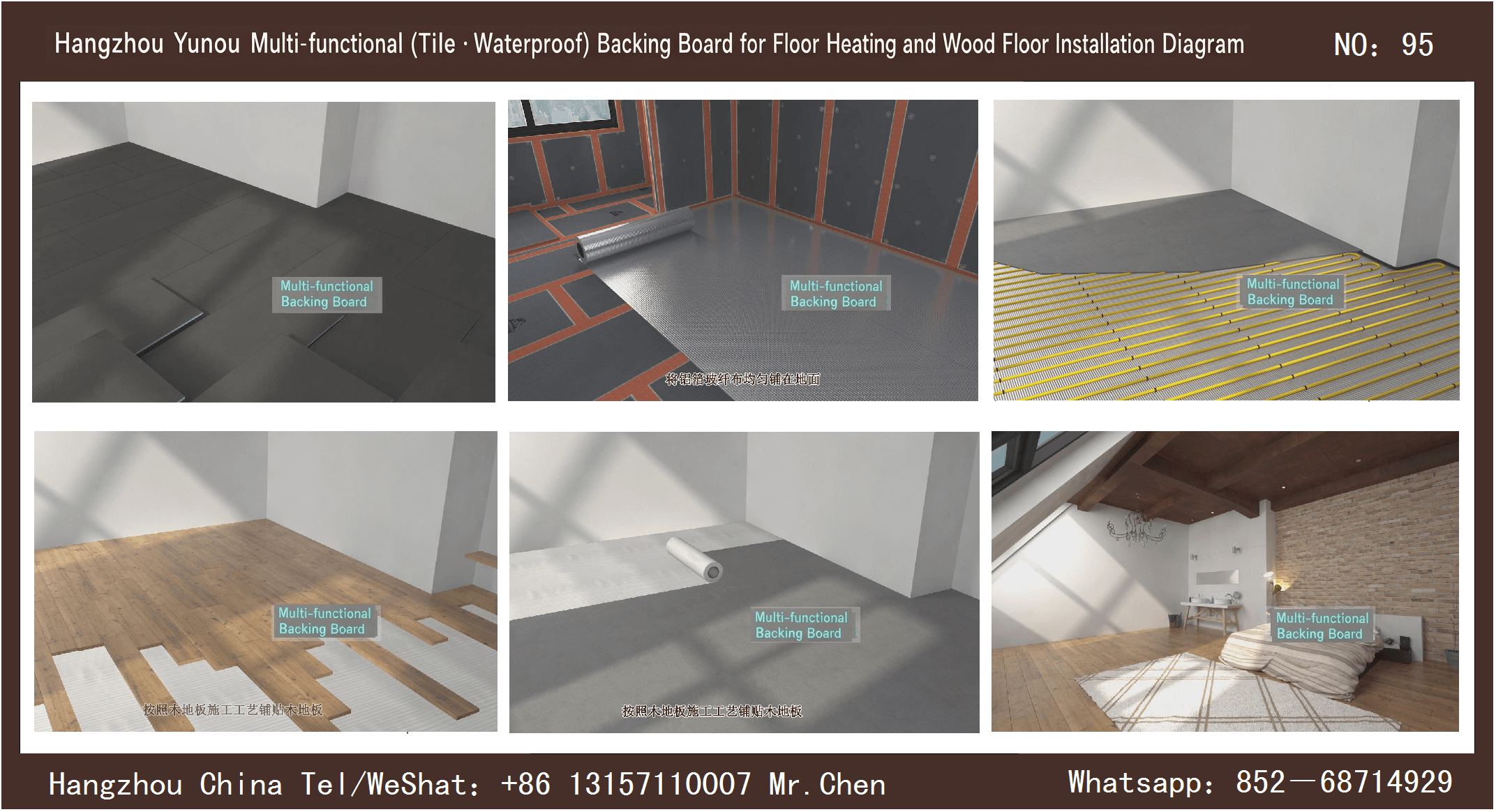

Thermal Insulation

The thermal insulation provided by this board is durable. The thermal conductivity of polystyrene is 0.035w/(m.k).

Hangzhou China Tel/WeChat: +86 13157110007 Mr. Chen Whatsapp: 852—68714929

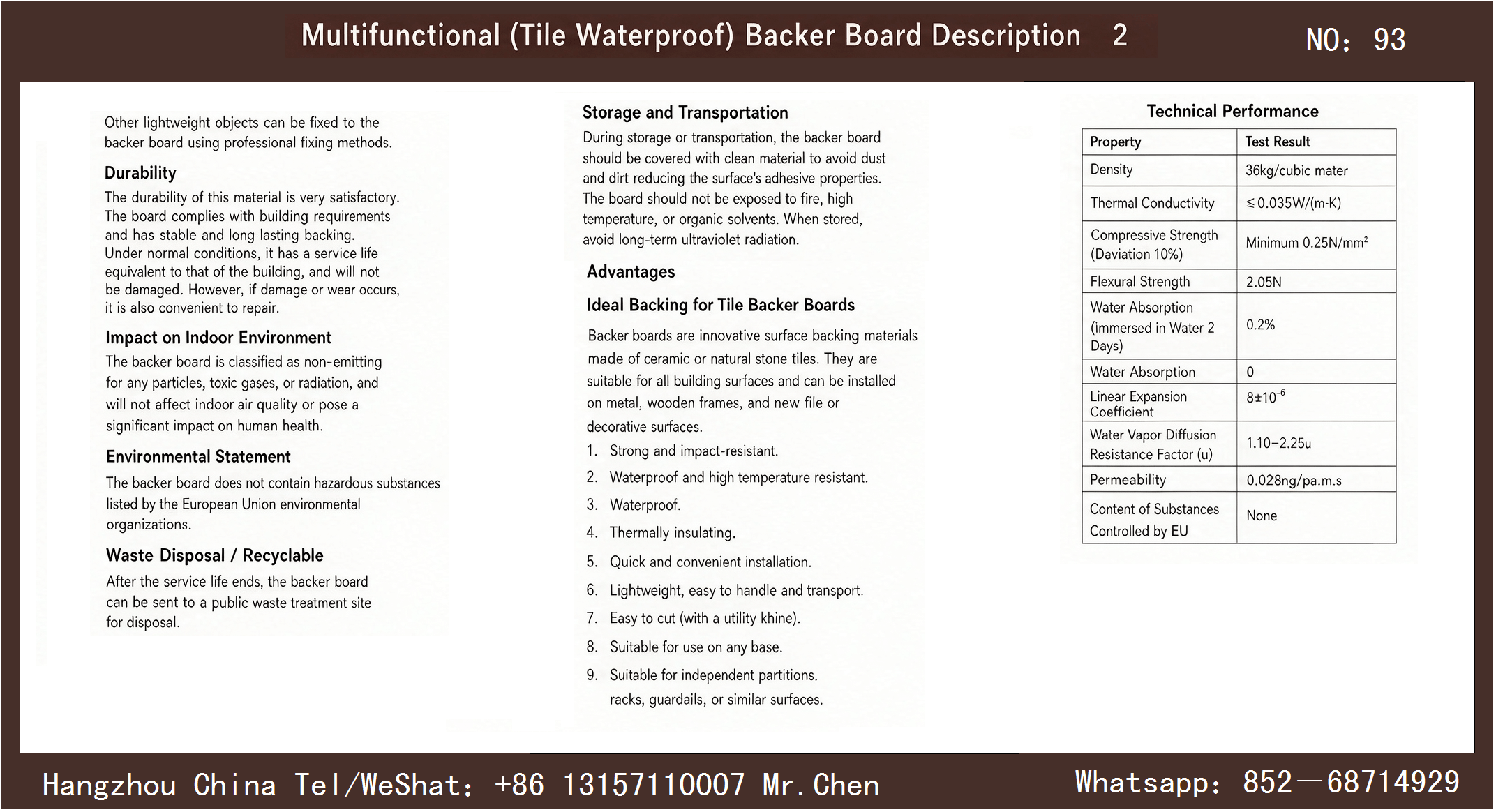

Multifunctional (Tile Waterproof) Backer Board Description 2

Other lightweight objects can be fixed to the backer board using professional fixing methods.

Durability

The durability of this material is very satisfactory. The board complies with building requirements and has stable and long lasting backing. Under normal conditions, it has a service life equivalent to that of the building, and will not be damaged. However, if damage or wear occurs, it is also convenient to repair.

Impact on Indoor Environment

The backer board is classified as non-emitting for any particles, toxic gases, or radiation, and will not affect indoor air quality or pose a significant impact on human health.

Environmental Statement

The backer board does not contain hazardous substances listed by the European Union environmental organizations.

Waste Disposal / Recyclable

After the service life ends, the backer board can be sent to a public waste treatment site for disposal.

Storage and Transportation

During storage or transportation, the backer board should be covered with clean material to avoid dust and dirt reducing the surface's adhesive properties. The board should not be exposed to fire, high temperature, or organic solvents. When stored, avoid long-term ultraviolet radiation.

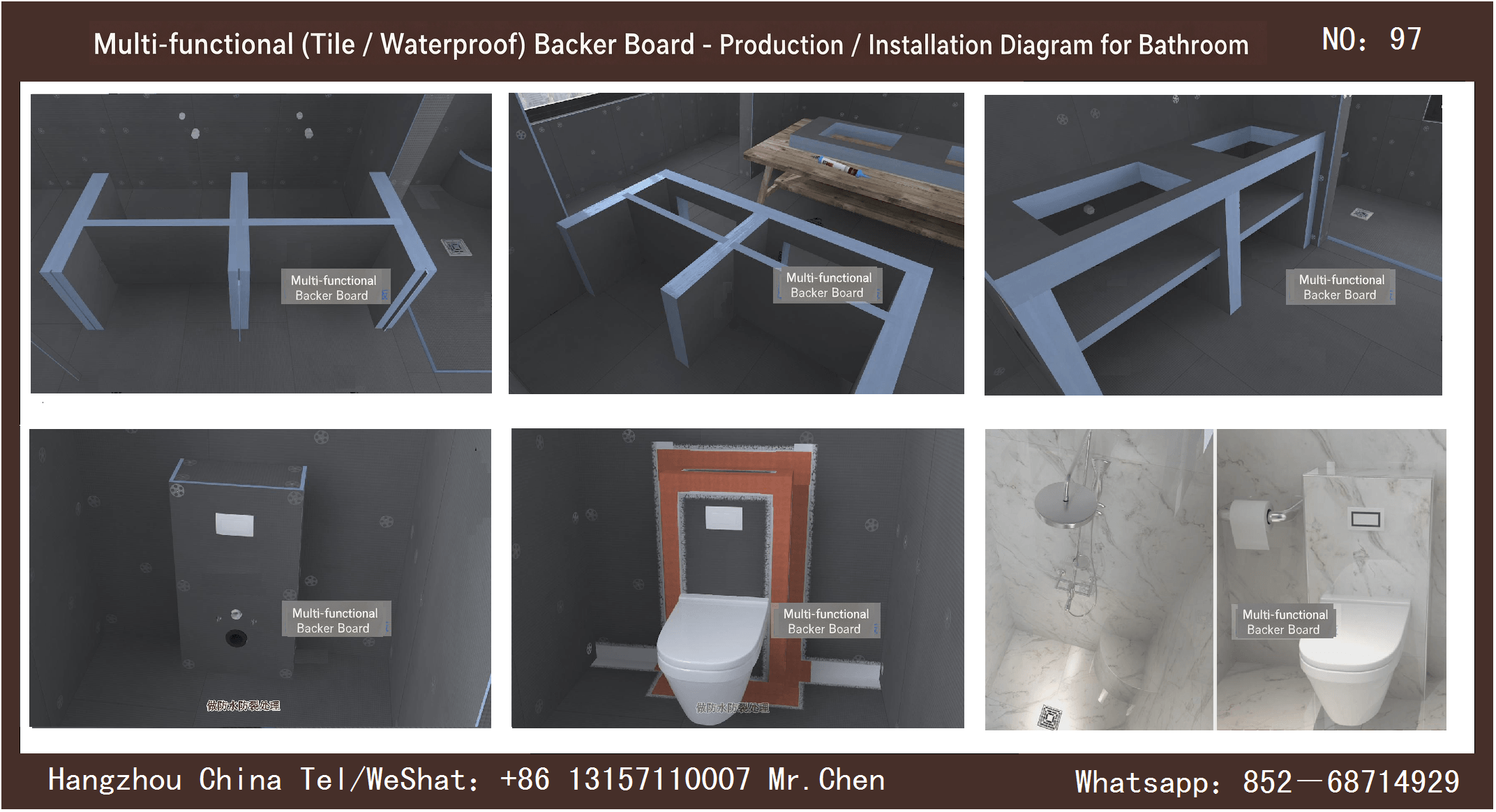

Advantages

Ideal Backing for Tile Backer Boards

Backer boards are innovative surface backing materials made of ceramic or natural stone tiles. They are suitable for all building surfaces and can be installed on metal, wooden frames, and new file or decorative surfaces.

1. Strong and impact-resistant.
2. Waterproof and high temperature resistant.
3. Waterproof.
4. Thermally insulating.
5. Quick and convenient installation.
6. Lightweight, easy to handle and transport.
7. Easy to cut (with a utility khine).
8. Suitable for use on any base.
9. Suitable for independent partitions. racks, guardails, or similar surfaces.

Hangzhou China Tel/WeChat: +86 13157110007 Mr. Chen Whatsapp: 852—68714929

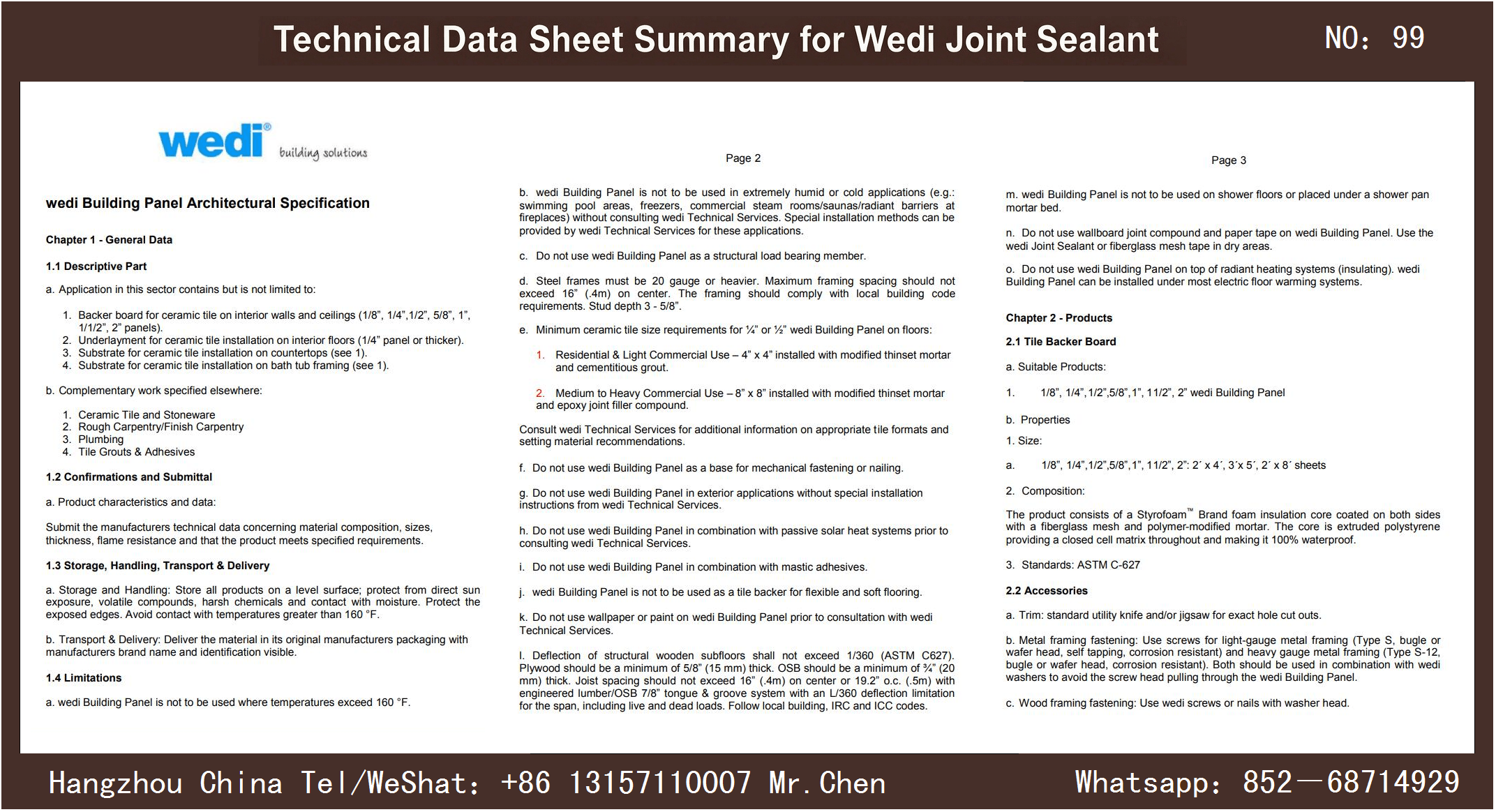

Technical Data Sheet Summary for Wedi Joint Sealant

wedi Building Panel Architectural Specification

Chapter 1 - General Data

1.1 Descriptive Part

a. Application in this sector contains but is not limited to:

1. Backer board for ceramic tile on interior walls and ceilings (1/8", 1/4",1/2",5/8", 1",1 1/2", 2" panels).
2. Underlayment for ceramic tile installation on interior floors (1/4" panel or thicker).
3. Substrate for ceramic tile installation on countertops (see 1).
4. Substrate for ceramic tile installation on bath tub framing (see 1).

b. Complementary work specified elsewhere:

1. Ceramic Tile and Stoneware
2. Rough Carpentry/Finish Carpentry
3. Plumbing
4. Tile Grouts & Adhesives

1.2 Confirmations and Submittal

a. Product characteristics and data: Submit the manufacturers technical data concerning material composition, sizes, thickness, flame resistance and that the product meets specified requirements.

1.3 Storage, Handling, Transport & Delivery

a. Storage and Handling: Store all products on a level surface; protect from direct sun exposure, volatile compounds, harsh chemicals and contact with moisture. Protect the exposed edges. Avoid contact with temperatures greater than 160 °F. b. Transport & Delivery: Deliver the material in its original manufacturers packaging with manufacturers brand name and identification visible.

1.4 Limitations

a. wedi Building Panel is not to be used where temperatures exceed 160 °F. b. wedi Building Panel is not to be used in extremely humid or cold applications (e.g.: swimming pool areas, freezers, commercial steam rooms/saunas/radiant barriers at fireplaces) without consulting wedi Technical Services. Special installation methods can be provided by wedi Technical Services for these applications. c. Do not use wedi Building Panel as a structural load bearing member. d. Steel frames must be 20 gauge or heavier. Maximum framing spacing should not exceed 16" (4m) on center. The framing should comply with local building code requirements. Stud depth 3 - 5/8". e. Minimum ceramic tile size requirements for 1/4" or 1/2" wedi Building Panel on floors:

1. Residential & Light Commercial Use – 4" × 4" installed with modified thinset mortar and cementitious grout.
2. Medium to Heavy Commercial Use – 8" × 8" installed with modified thinset mortar and epoxy joint filler compound. Consult wedi Technical Services for additional information on appropriate tile formats and setting material recommendations.

f. Do not use wedi Building Panel as a base for mechanical fastening or nailing. g. Do not use wedi Building Panel in exterior applications without special installation instructions from wedi Technical Services. h. Do not use wedi Building Panel in combination with passive solar heat systems prior to consulting wedi Technical Services. i. Do not use wedi Building Panel in combination with mastic adhesives. j. Do not use wedi Building Panel to be used as a tile backer for flexible and soft flooring. k. Do not use wallpaper or paint on wedi Building Panel prior to consultation with wedi Technical Services. l. Deflection of structural wooden subfloors shall not exceed 1/360 (ASTM C627). Plywood should be a minimum of 5/8" (15 mm). OSB should be a minimum of 3/4" (20 mm) thick. Joist spacing should not exceed 16" (4m) on center or 19.2" (5m) with engineered lumber/OSB 7/8" tongue & groove system with an L/360 deflection limitation for the span, including live and dead loads. Follow local building, IRC and ICC codes.

m. wedi Building Panel is not to be used on shower floors or placed under a shower pan mortar bed. n. Do not use wallboard joint compound and paper tape on wedi Building Panel. Use the wedi Joint Sealant or fiberglass mesh tape in dry areas. o. Do not use wedi Building Panel on top of radiant heating systems (insulating). wedi Building Panel can be installed under most electric floor warming systems.

Chapter 2 - Products

2.1 Tile Backer Board

a. Suitable Products:

1. 1/8", 1/4",1/2",5/8",1",1 1/2", 2" wedi Building Panel b. Properties a. Size: 1/8", 1/4",1/2",5/8",1",1 1/2", 2": 2' × 4', 3' × 5', 2' × 8' sheets
2. Composition: The product consists of a Styrofoam™ Brand foam insulation core coated on both sides with a fiberglass mesh and polymer-modified mortar. The core is extruded polystyrene providing a closed cell matrix throughout and making it 100% waterproof.
3. Standards: ASTM C-627

2.2 Accessories

a. Trim: standard utility knife and/or jigsaw for exact hole cut outs. b. Metal framing fastening: Use screws for light-gauge metal framing (Type S, bugle or water head, self tapping, corrosion resistant) and heavy gauge metal framing (Type S-12, bugle or water head, corrosion resistant). Both should be used in combination with washers to avoid the screw head pulling through the wedi Building Panel. c. Wood framing fastening: Use wedi screws or nails with washer head.

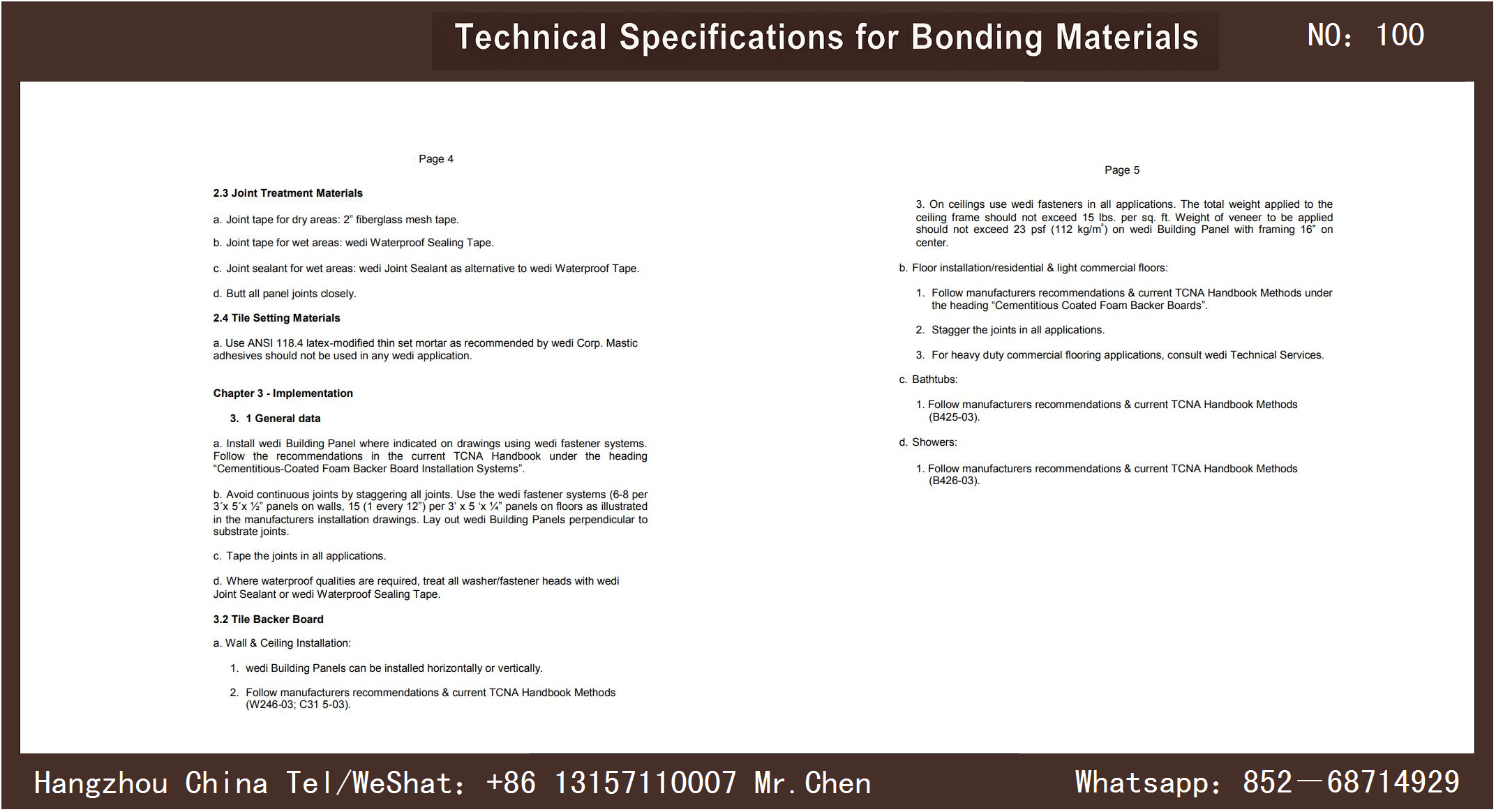

Technical Specifications for Bonding Materials

Page 4

2.3 Joint Treatment Materials

a. Joint tape for dry areas: 2" fiberglass mesh tape. b. Joint tape for wet areas: wedi Waterproof Sealing Tape. c. Joint sealant for wet areas: wedi Joint Sealant as alternative to wedi Waterproof Tape. d. Butt all panel joints closely.

2.4 Tile Setting Materials

a. Use ANSI 118.4 latex-modified thin set mortar as recommended by wedi Corp. Mastic adhesives should not be used in any wedi application.

Chapter 3 - Implementation

3. 1 General data

a. Install wedi Building Panel where indicated on drawings using wedi fastener systems. Follow the recommendations in the current TCNA Handbook under the heading "Cementitious-Coated Foam Backer Board Installation Systems". b. Avoid continuous joints by staggering all joints. Use the wedi fastener systems (6-8 per 3' × 5' × ½" panels on walls, 15 (1 every 12") per 3' × 5' × ¼" panels on floors as illustrated in the manufacturers installation drawings. Lay out wedi Building Panels perpendicular to substrate joints. c. Tape the joints in all applications. d. Where waterproof qualities are required, treat all washer/fastener heads with wedi Joint Sealant or wedi Waterproof Sealing Tape.

3.2 Tile Backer Board

a. Wall & Ceiling Installation:

1. wedi Building Panels can be installed horizontally or vertically.
2. Follow manufacturers recommendations & current TCNA Handbook Methods (W246-03; C31 5-03).

Page5 3. On ceilings use wedi fasteners in all applications. The total weight applied to the ceiling frame should not exceed 15 lbs. per sq. ft. Weight of veneer to be applied should not exceed 23 psf (112 kg/m²) on wedi Building Panel with framing 16" on center.

b. Floor installation/residential & light commercial floors

1. Follow manufacturers recommendations & current TCNA Handbook Methods under the heading "Cementitious Coated Foam Backer Boards".
2. Stagger the joints in all applications.
3. For heavy duty commercial flooring applications, consult wedi Technical Services.

c. Bathtubs:

1. Follow manufacturers recommendations & current TCNA Handbook Methods (B425-03).

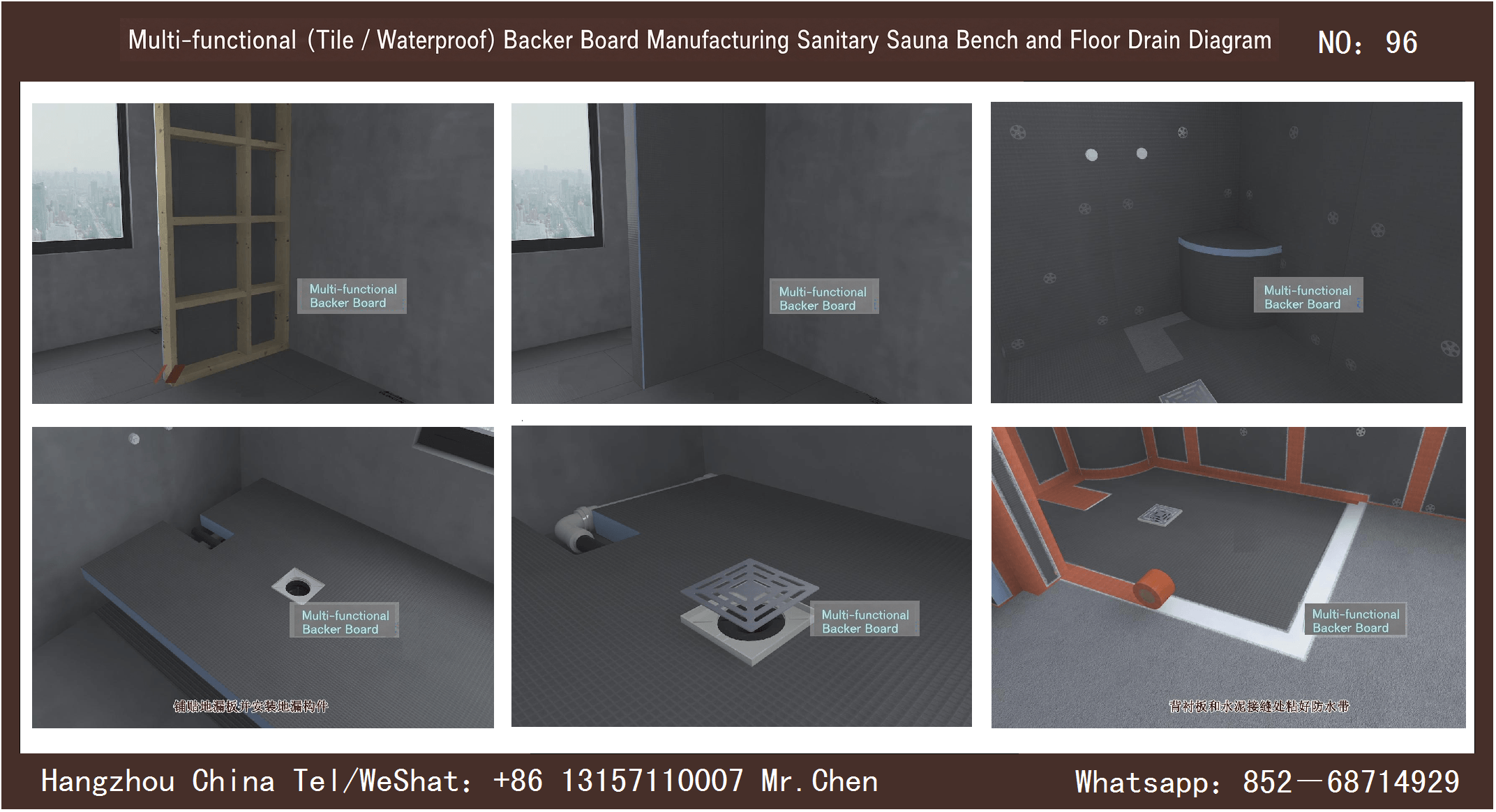

d. Showers:

1. Follow manufacturers recommendations & current TCNA Handbook Methods (B426-03).

Hangzhou China Tel/WeChat: +86 13157110007 Mr. Chen Whatsapp: 852—68714929

EU & USA Technical Data Sheets - Text Bonding

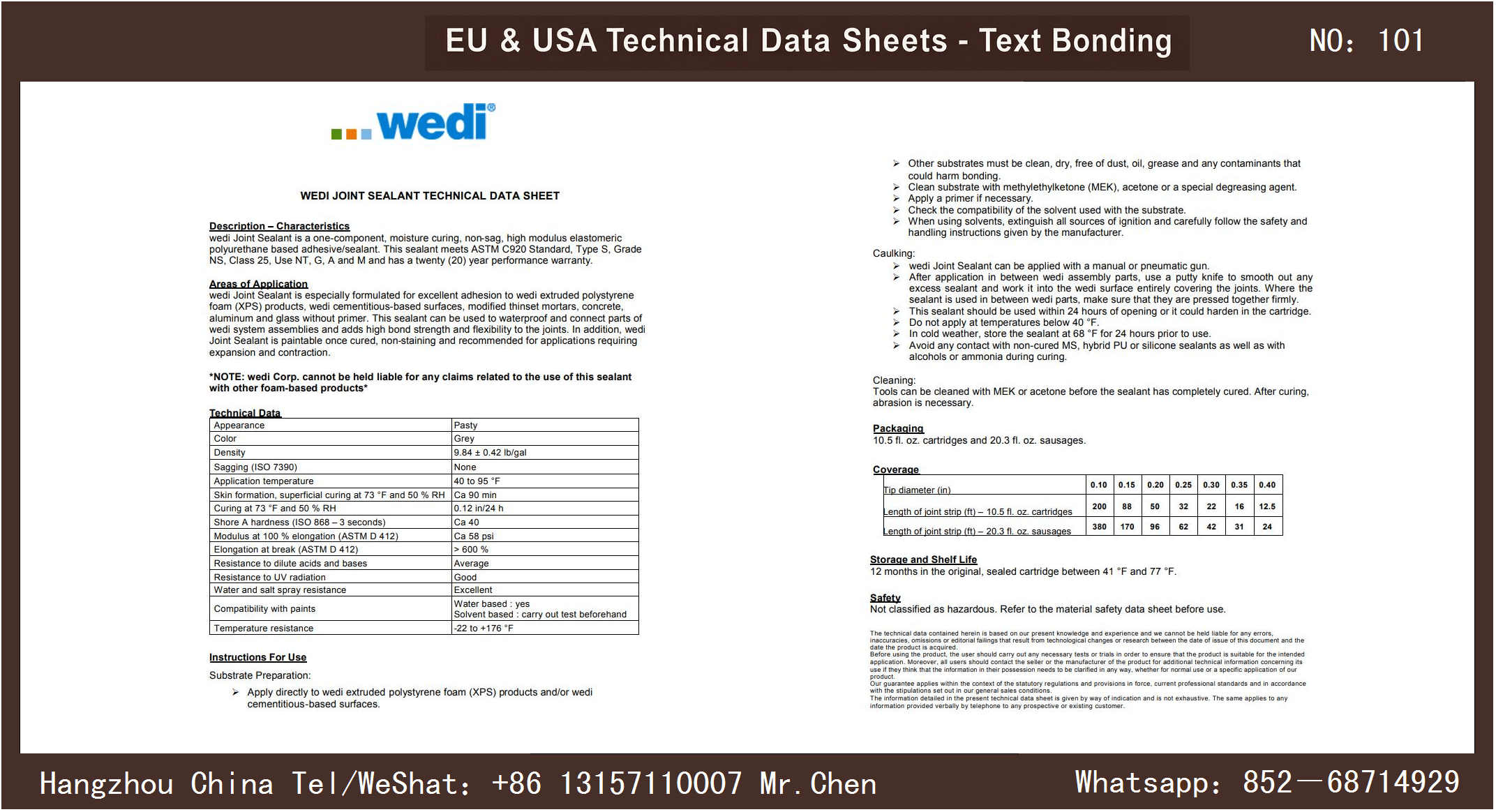

WEDI JOINT SEALANT TECHNICAL DATA SHEET

Description – Characteristics

wedi Joint Sealant is a one-component, moisture curing, non-sag, high modulus elastomeric polyurethane based adhesive/sealant. This sealant meets ASTM C920 Standard, Type S, Grade NS, Class 25, Use NT, G, A and M and has a twenty (20) year performance warranty.

Areas of Application

wedi Joint Sealant is especially formulated for excellent adhesion to wedi extruded polystyrene foam (XPS) products, wedi cementitious-based surfaces, modified thinset mortars, concrete, aluminum and glass without primer. This sealant can be used to waterproof and connect parts of wedi system assemblies and adds high bond strength and flexibility to the joints. In addition, wedi Joint Sealant is paintable once cured, non-staining and recommended for applications requiring expansion and contraction.

NOTE: wedi Corp. cannot be held liable for any claims related to the use of this sealant with other foam-based products

Instructions For Use

Substrate Preparation:

➢ Apply directly to wedi extruded polystyrene foam (XPS) products and/or wedi cementitious-based surfaces. ➢ Other substrates must be clean, dry, free of dust, oil, grease and any contaminants that could harm bonding. ➢ Clean substrate with methylethylketone (MEK), acetone or a special degreasing agent. ➢ Apply a primer if necessary. ➢ Check the compatibility of the solvent used with the substrate. ➢ When using solvents, extinguish all sources of ignition and carefully follow the safety and handling instructions given by the manufacturer.

Caulking:

➢ wedi Joint Sealant can be applied with a manual or pneumatic gun. ➢ After application in between wedi assembly parts, use a putty knife to smooth out any excess sealant and work it into the weld surface entirely covering the joints. Where the sealant is used in between wedi parts, make sure that they are pressed together firmly. ➢ This sealant should be used within 24 hours of opening or it could harden in the cartridge. ➢ Do not apply at temperatures below 40 °F. ➢ In cold weather, store the sealant at 68 °F for 24 hours prior to use. ➢ Avoid any contact with non-cured MS, hybrid PU or silicone sealants as well as alcohols or ammonia during curing.

Cleaning:

Tools can be cleaned with MEK or acetone before the sealant has completely cured. After curing, abrasion is necessary.

Packaging

10.5 fl. oz. cartridges and 20.3 fl. oz. sausages.

Coverage

Storage and Shelf Life

12 months in the original, sealed cartridge between 41 °F and 77 °F.

Safety

Not classified as hazardous. Refer to the material safety data sheet before use.

The technical data contained herein is based on our present knowledge and experience and we cannot be held liable for any errors, inaccuracies, omissions or editorial faults that result from technological changes or research beyond the date of this document and the before using the product, the user should carry out any necessary tests or trials in order to ensure that the product is suitable for the intended application. Moreover, all users should contact the seller or the manufacturer for additional technical information concerning the product before using the product. Our warranties within the context of the product are to be clarified by us in writing, whether for normal use or a special application of our products. All stipulations set out in our general sales conditions and provisions in force, for normal use and in accordance with the information provided verbally by the technical sheet are given by way of indication and is not exhaustive. The same applies to information provided verbally by telephone to any prospective or existing customer.

Hangzhou China Tel/WeChat: +86 13157110007 Mr. Chen Whatsapp: 852—68714929

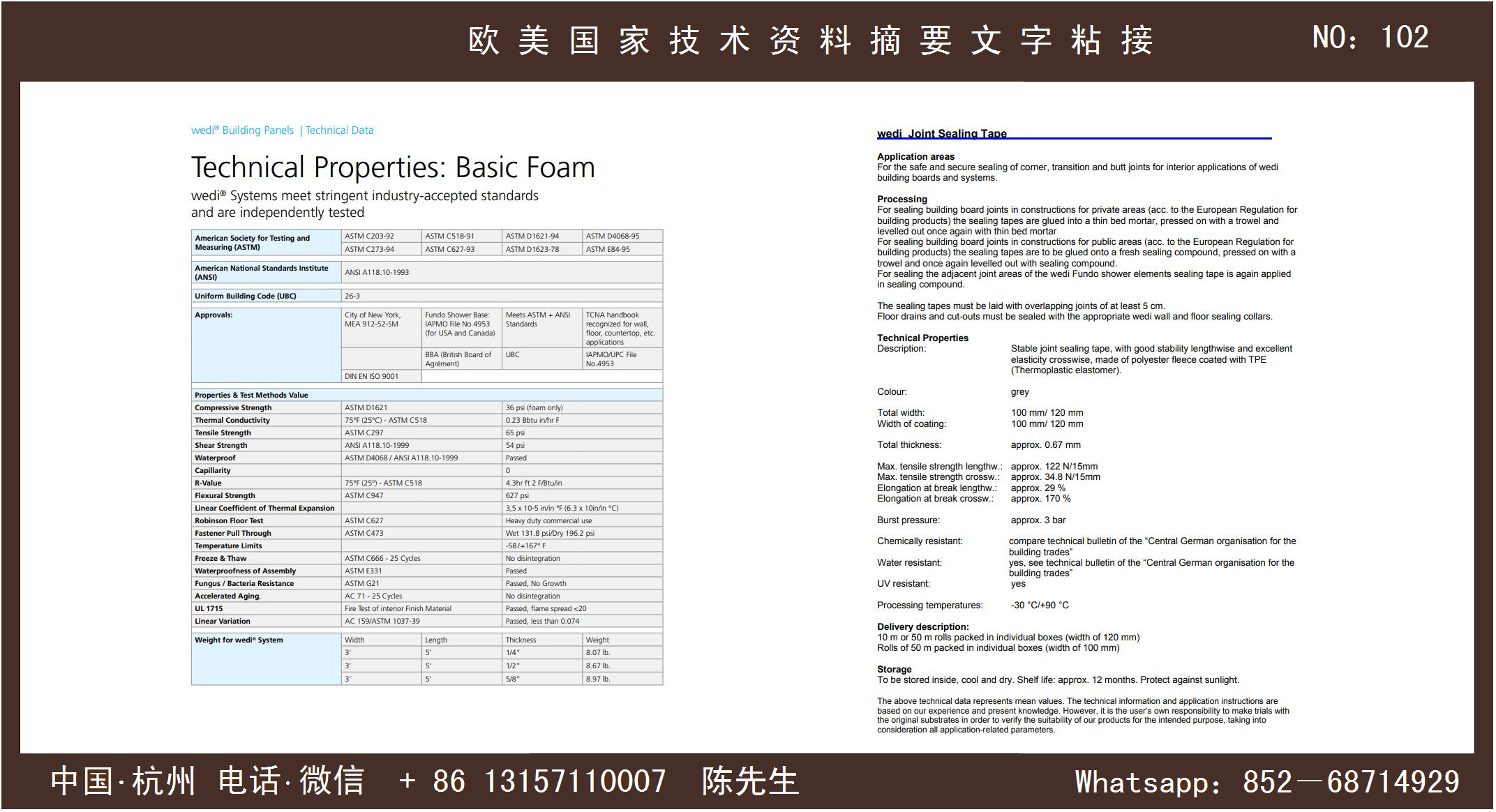

wedi® Building Panels | Technical Data

Technical Properties: Basic Foam

wedi® Systems meet stringent industry-accepted standards and are independently tested

Approvals:

City of New York, MEA 912-52-M Fundo Shower Base: (for USA and Canada) BBA (British Board of Agreement) Meets ASTM + TCNA standards recognized for wall, floor, countertop, etc. IAPMO/OC File No.4953 UBC

Weight for wedi® System

wedi Joint Sealing Tape

Application areas

For the safe and secure sealing of corner, transition and butt joints for interior applications of wedi building boards and systems.

Processing

For sealing building board joints in constructions for private areas (acc. to the European Regulation for building products) the sealing tapes are glued into a thin bed mortar, pressed on with a trowel and levelled out once again with thin bed mortar. For sealing building board joints in constructions for public areas (acc. to the European Regulation for building products) the sealing tapes are to be glued onto a fresh sealing compound, pressed on with a trowel and once again levelled out with sealing compound. For sealing the adjacent joint areas of the wedi Fundo shower elements tape is again applied in sealing compound.

The sealing tapes must be laid with overlapping joints of at least 5 cm. Floor drains and cut-outs must be sealed with the appropriate wedi wall and floor sealing collars.

Technical Properties

Description: Stable joint sealing tape, with good stability lengthwise and excellent elasticity crosswise, made of polyester fleece coated with TPE (Thermoplastic elastomer). Colour: grey Total width: 100 mm/ 120 mm Width of coating: 100 mm/ 120 mm Total thickness: approx. 0.67 mm Max. tensile strength lengthw.: approx. 122 N/15mm Max. tensile strength crossw.: approx. 34.8 N/15mm Elongation at break lengthw.: approx. 29 % Elongation at break crossw.: approx. 170 % Burst pressure: approx. 3 bar Chemically resistant: compare technical bulletin of the "Central German organisation for the building trades", yes, see technical bulletin of the building trades Water resistant: yes UV resistant: yes

Processing temperatures:

-30 °C/+90 °C

Delivery description:

10 m or 50 m rolls packed in individual boxes (width of 120 mm) Rolls of 50 m packed in individual boxes (width of 100 mm)

Storage

To be stored inside, cool and dry. Shelf life: approx. 12 months. Protect against sunlight.

The above technical data represents mean values. The technical information and application instructions are based on our experience and present knowledge. However, it is the user's own responsibility to make trials on the original substrates in order to verify the suitability of our products for the intended purpose, taking into consideration all application-related parameters.
