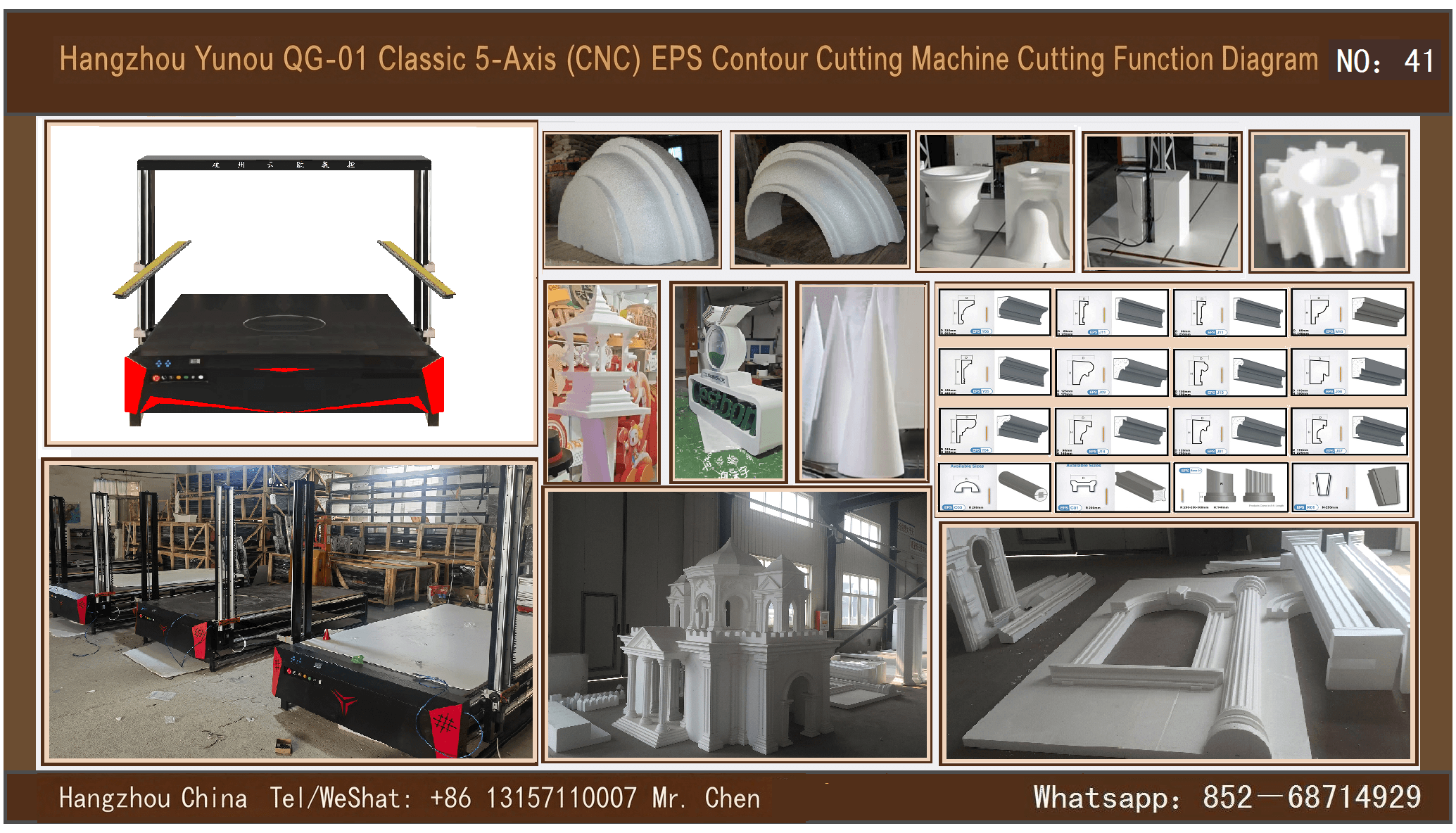

Yun'ou QG-01 Model Hangzhou Yun'ou QG-01 Model Classic Five-axis (CNC) EPS Line Cutting Machine

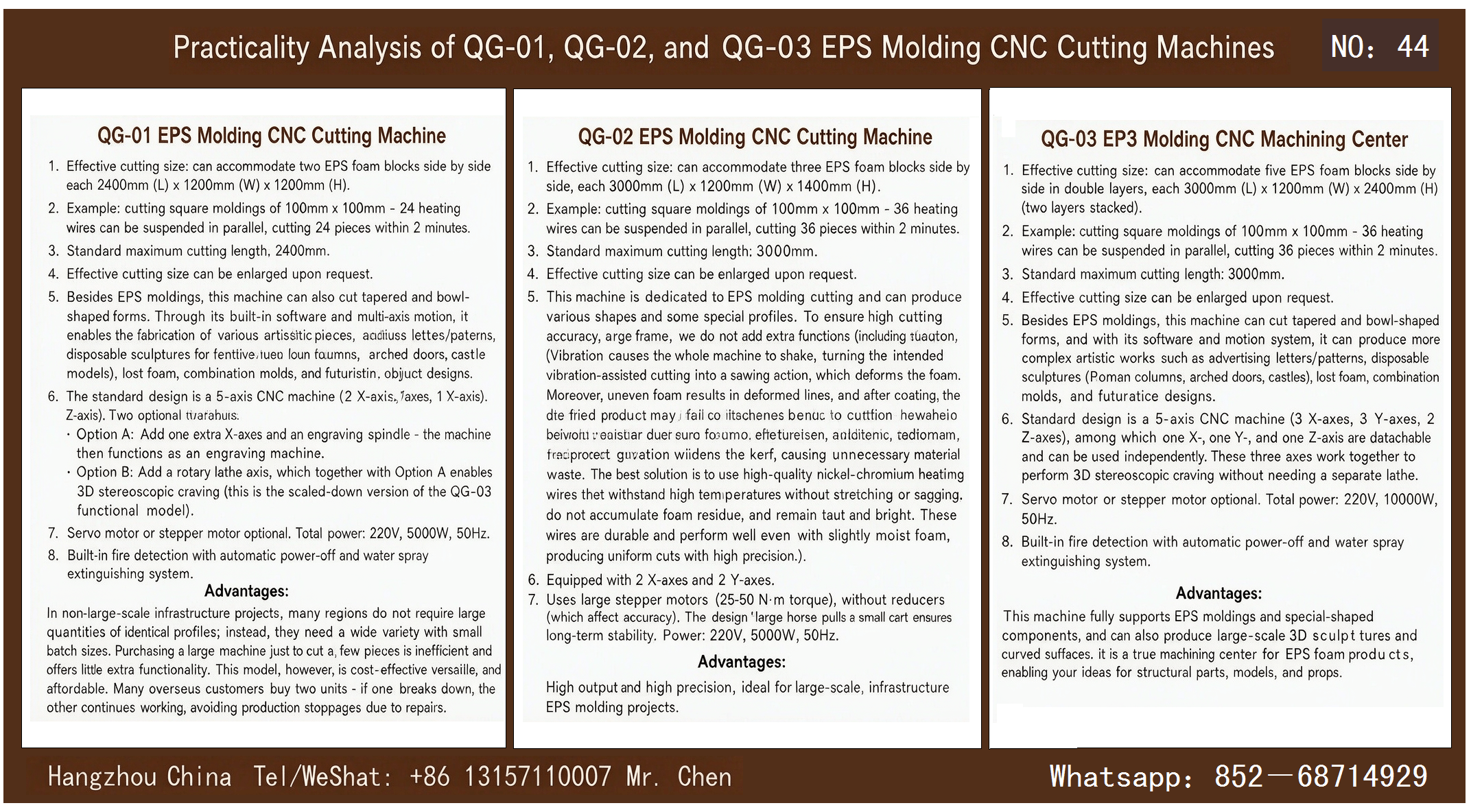

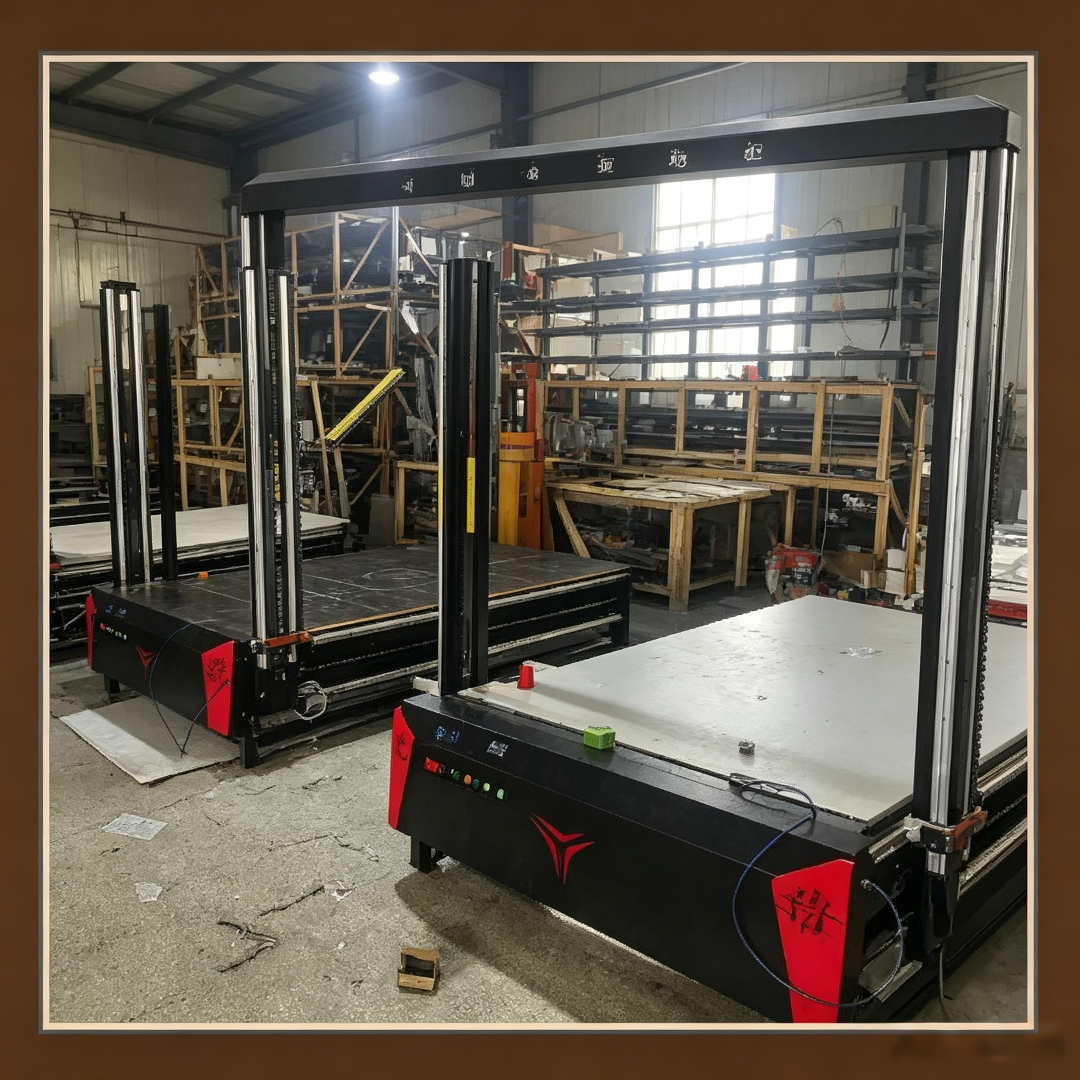

QG-01 EPS Molding CNC Cutting Machine

1. Effective cutting size: can accommodate two EPS foam blocks side by side each 2400mm (L) × 1200mm (W) × 1200mm (H).
2. Example: cutting square moldings of 100mm × 100mm - 24 heating wires can be suspended in parallel, cutting 24 pieces within 2 minutes.
3. Standard maximum cutting length, 2400mm.
4. Effective cutting size can be enlarged upon request.
5. Besides EPS moldings, this machine can also cut tapered and bowl-shaped forms. Through its built-in software and multi-axis motion, it enables the fabrication of various artistic pieces, archius lettes/paterns, disposable sculptures for festive,rueo loun faums, arched doors, castle models), lost foam, combination molds, and futuristin, object designs.
6. The standard design is a 5-axis CNC machine (2 X-axis,7axes, 1 X-axis). Z-axis). Two optional itavahus.
• Option A: Add one extra X-axes and an engraving spindle - the machine then functions as an engraving machine.
• Option B: Add a rotary lathe axis, which together with Option A enables 3D stereoscopic craving (this is the scaled-down version of the QG-03 functional model).
7. Servo motor or stepper motor optional. Total power: 220V, 5000W, 50Hz.
8. Built-in fire detection with automatic power-off and water spray extinguishing system.

Advantages: In non-large-scale infrastructure projects, many regions do not require large quantities of identical profiles; instead, they need a wide variety with small batch sizes. Purchasing a large machine just to cut a few pieces is inefficient and offers little extra functionality. This model, however, is cost-effective versatile, and affordable. Many overseas customers buy two units - if one breaks down, the other continues working, avoiding production stoppages due to repairs.
